PP Sheet Grinding / Shredder Machine Manufacturers, Suppliers in India from Maharashtra
We are one of the leading manufacturers and suppliers of PP Sheet Grinding / Shredder Machines in India, based in Maharashtra. Known for precision engineering and high-performance output, our machines are redefining plastic recycling by turning bulky polypropylene (PP) sheets into uniform granules with ease and efficiency.
Product Information:

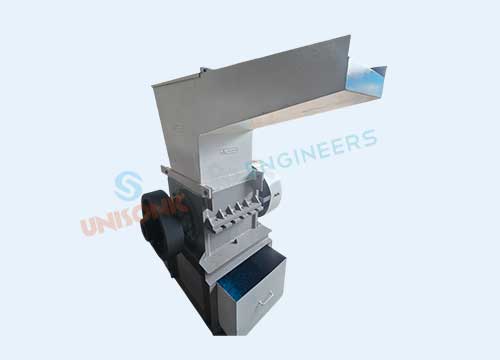

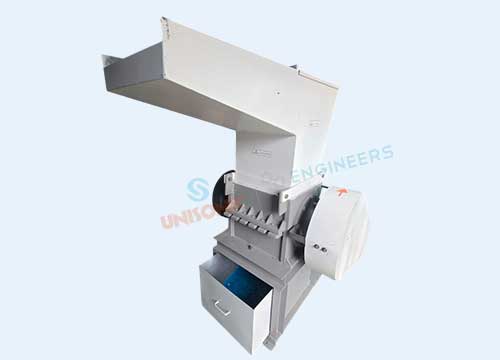

The PP Sheet Grinding / Shredder Machine is a high-performance solution designed specifically for the shredding and grinding of polypropylene (PP) sheets, off-cuts, and plastic scrap. Built to withstand heavy-duty operations, this machine plays a crucial role in plastic recycling by converting bulky plastic sheets into uniform granules suitable for further processing. Its robust structure, precision blades, and optimized cutting chamber ensure consistent output with minimal dust generation. Ideal for both small and large-scale recycling units, this machine significantly reduces plastic waste volume and contributes to an efficient and sustainable manufacturing cycle.
Product Specifications:
| Specification | Details |
|---|---|
| Material Handled | PP Sheets, PE, ABS, PVC sheets |
| Motor Power | Ranges from 10 HP to 50 HP (custom-built options) |
| Rotor Speed | 400 – 600 RPM |
| Blade Type | D2 / SKD-11 / High-Speed Steel |
| Number of Blades | 3 to 5 Rotary + 2 Fixed (depending on model) |
| Feeding System | Manual / Belt Conveyor (optional) |
| Output Size | Adjustable from 10mm to 40mm via mesh screen |
| Capacity Range | 100 to 1000 kg/hr |
| Construction | MS / SS Body, Powder-Coated or Painted Finish |
| Drive Mechanism | Direct Coupled / Belt Driven |
| Cooling System | Air or Water Cooled Bearings |
| Noise Level | ≤ 80 dB with sound enclosure (optional) |
| Electrical Supply | 3 Phase, 415V, 50 Hz |
Product Advantages:
- Efficient Material Reduction: Breaks down PP sheets and large plastic scraps quickly and uniformly, reducing bulk volume.
- High Output Capacity: Supports continuous operation with throughput ranging up to 1000 kg/hr.
- Energy Efficient: Engineered to consume minimal energy while delivering maximum productivity.
- Low Maintenance: Designed with easily replaceable blades and accessible maintenance points.
- Sturdy Construction: Heavy-duty steel frame ensures long-term durability even in harsh industrial environments.
- Customizable: Can be tailored with different blade configurations, screen sizes, and feed mechanisms.
- Improved Safety: Equipped with thermal overload protection, emergency stop switches, and safety covers.
Product Features:
- High-Speed Cutting Chamber: Engineered for efficient grinding with minimal vibration.
- Optimized Blade Design: Precision-engineered blades offer sharper cuts, longer life, and better throughput.
- Integrated Control Panel: Easy-to-use interface for starting, stopping, and monitoring operations.
- Dust-Minimized Design: Reduces airborne particles and maintains a cleaner work environment.
- Screen Mesh Variability: Interchangeable screens allow control over final particle size.
- Optional Add-ons: Conveyor system, cyclone separator, magnetic separation unit, and soundproof enclosure.
- Mobility Option: Available with lockable caster wheels for plant floor movement (for smaller models).
Product Applications:
- Plastic Recycling Plants: For shredding post-industrial and post-consumer PP sheet waste.
- Thermoforming Industry: Reprocessing off-cuts and rejects from PP thermoformed sheets.
- Plastic Extrusion Units: Pre-grinding material for re-extrusion or compounding.
- Packaging Industry: Shredding edge trims, bubble sheets, and plastic films.
- Automotive Component Manufacturing: Recycling plastic sheet scraps from molding and trimming processes.
- Agricultural Sheet Production: Converting defective rolls and sheets into reusable granules.
- Waste Management Services: Supporting municipal and industrial plastic waste handling processes.
